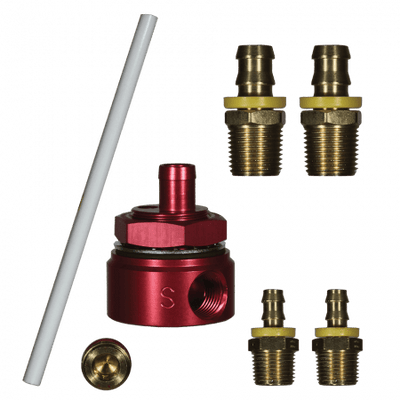

FASS Fuel Systems Diesel Fuel Bulkhead and Suction Tube Kit (STK1002) Part No: STK1002 Universal Applications, Ford Powerstroke, GM Duramax and Dodge Cummins

The STK1002 (Suction Tube Kit), machined from 6061 T-6 Billet Aluminum, is a Bulkhead Fitting comprised of a 5/8 inch Suction Tube along with a 1/2 inch Fuel Return Port. This new and improved version from our previous STK-Kit allows the user to plum their FASS return line directly to their bulkhead fitting, eliminating all cutting of the filler neck, and significantly speeds up the installation process.

The suction tube is fabricated of PTFE Teflon which can be easily cut to adapt to different depth fuel tanks. Properly installed, you can safely operate down to about 1/8 tank of fuel.

Bulkhead and Suction Tube Features:

Both Suction Tube and Return Port
Increase Fuel Delivery
Eliminates С� Tank Fuel Issue
Unique Design For Simple Installation
5/8 inch Suction Tube Port
1/2 inch Fuel Return Port

This product is suggested to be installed with our FASS Titanium Series Systems. The larger suction tubes and improve fuel delivery and work perfectly with higher volume fuel Systems. If you are purchasing a FASS Titanium Series System at the same time check your kits contents, some Systems include this item standard.
