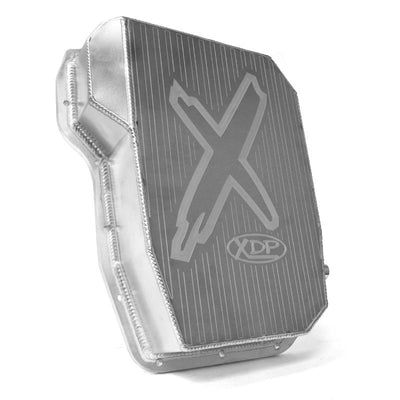

Add 2 quarts of extra fluid capacity and a custom look to the 68RFE transmission in your Cummins powered Ram with the XDP X-TRA Deep Aluminum Transmission Pan (68RFE) XD452. The XDP X-TRA Deep Transmission Pan is built with an aluminum sheet metal construction to give you a race-inspired look that is sleek, lightweight, and durable.

Each pan features a fully-welded construction and a 3/8 inch thick mounting flange for added strength and resistance to warping. The CNC engraved bottom provides you with enhanced looks and styling while the direct-fit design allows this pan to easily install using any OE-style gasket.

As an upgrade over the factory pan, the X-TRA Deep Pan is equipped with a drain plug and an 1/8 inch NPT port access to install a transmission temperature sender. This pan comes ready to install with new stainless steel hardware and is backed by the XDP 1-year unlimited mileage warranty.

Features:

1/8 inch NPT Temperature Port
Deep Sump For Added Capacity
Fabricated Aluminum Construction
2 Quarts Added Capacity Over Stock
Includes Stainless Steel Mounting Hardware

Application Notes:

Does not include a gasket or filter.
Fits 2007.5-2022 Cummins 6.7L equipped with 68RFE Transmission
In most cases the factory transmission pan was sealed with RTV Silicone and can be reinstalled the same way (not included).
The XDP 68RFE Billet Filter Clamp XD478 is required on applications running a stock valve body with a deep transmission pan.
